OB VAN interior

BROADCAST TRUCK RENTAL

Live streaming and TV programs

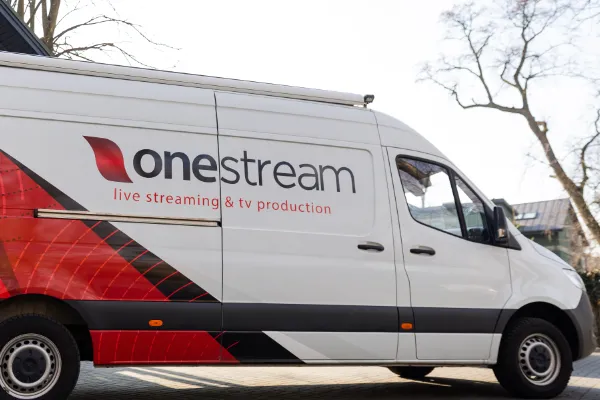

The transmission truck, named UNIT10 UHD, built on the basis of the longest version of the Mercedes Sprinter, was created in 2020 and can handle the most demanding event, sports and music events as well as TV productions.

The transmission truck is equipped with 10 fiber-optic camera tracks including 6pcs cameras Panasonic AK-HC 3900 4K/12G with a wide selection of lenses, and 4pcs robotic PTZ cameras Panasonic AW-UE 150 4K/12G. There are 6 production seats in the transmission vehicle (video producer, audio producer, level man, graphic system operator, EVS replay system allowing the team to work comfortably.

The transmission truck is equipped with the latest version of the intercom system RTS Intercom System along with 8 wired desktops and 8 wireless beltpacks. Of course, we have a replay system and an excellent graphics system on board. A huge advantage of our transmission truck is the quality of the image that is recorded by Panasonic cameras in 4K/12G standard with HDR (High Dynamic Range) technology. The transmission truck is also equipped with the latest equipment and servers LiveU allowing to carry out remote connections and telebridges even in 4K/12G quality.

OUTSIDE BROADCASTING VAN TECHNICAL SPECIFICATIONS

OB VAN

  • Mercedes Sprinter 316 LONG
  • Car length 7.4m
  • Technical space 6.2m
  • Payload 3.5t
  • LED outdoor lighting
  • Solar awning
  • Three-phase power supply 32A
  • Also 220V power supply
  • UPS system
  • Air conditioning in production are
  • Air conditioning in technical area
  • Webasto heating
  • LED lighting for each positions
  • LED ambient color lighting
  • Sites 6pc.
  • TV Lgic 4K/12G screens 2pcs
  • BenQ SW272U SDR/HDR screens
  • BenQ 27" screens in audio area
  • WiFi
  • Masterclock

VIDEO EQUIPMENT

  • Panasonic AK-HC3900G 4K/UHD studio camera tracks - 6 pcs.
  • Lenses:
    • Canon HJ14 eX4.3 BIASE - 1 pc.
    • Fujinon HA13 x4.5 BERD - 1 unit.
    • Fujinon XA20 x8.5BRM - 4 pcs.
    • Fujinon HA42 x9.7-BERD - 1 unit.
    • Canon XJ86 x9.3 - 1 unit.
    • others on request
  • Panasonic AW-UE 150 PTZ cameras - 2 pcs.
  • AU-RP 150 PTZ camera control panel
  • Marshall CV 503 POV cameras - 4 pcs.
  • Marshall CV-RCP-V2 control for CCU cameras
  • RossCarbonite Ultra 12G 4K 2ME
  • Ross Carbonite Black 2 panel (2ME)
  • Hyperdeck 12G 4K recorders 1 pc.
  • Atomos Shogun II recorder - 8 recording tracks
  • EVS XFile 3 all licenses
  • 1 x Videohub 12G/4K 80x80 Router
  • 4 x Cisco CBS 350



AUDIO EQUIPMENT

  • Yamaha QL5
  • Stange box Yamaha Tio 1608-D - 2pcs.
  • Dante fiber optic link 300m - 2pcs.
  • Sonifex AVN-CU4 commentator desk.
  • Cisco CBS CBS 350 Dante Routing - 4 pcs.

MICROPHONE SYSTEMS

  • Shure ULXD 4Q Dante system - 8 pcs.
  • Sennheiser EW 100 microphone system - 4 pieces.

MICROPHONES

  • DPA-6066 headset microphones - 8 pieces.
  • Lavalier microphones Countryman B6 - 4 pcs.
  • Countryman E5 headset microphones - 4 pieces.
  • Sennheiser MKE 2 GOLD microphones - 4 pieces.
  • Sennheiser e935 handheld microphones - 4 pcs.
  • Shure Beta 58 delivery microphones- 4 pcs.
  • Shure Beta 87A handheld microphones - 4 pieces.
  • Sennheiser IEM G4 - 8 pcs.

COMMENTATOR PANEL

  • Sonifex AVN-CU 4
  • Support for up to 4 commentators
  • Analog or dante connection
  • Sennheiser HMDC 27 active noise cancelling headphones
  • RTS intercom, OMS OMNEO matrix
  • Digital wireless beltpacks 8 pcs.
  • Desktop panels RTS DKP 4016 - 5 pcs.
  • ROAMEO wireless system
  • IFB system via Intercom RTS - 8 pcs.
  • Motorola CP040 10x

ADDITIONAL ELEMENTS

ENCODER

  • Encoder LiveU LU 600 4K/12G HEVEC PRO (8 LTE modems).
  • Encoder LiveU LU 300 HEVEC PRO (4 LTE modems)
  • Teradek Prism 4K/12G HDR HEVEC - 2 pcs.
  • LiveU LU4000 12G 4K -1out 12G server
  • LiveU LU2000 HD Server - 4 Out HD
  • LiveU Cloud 12G/4K receiving server
  • Remote Production studio
  • Caspar 12G 4K server
  • XPression 12G 4K graphics server
  • DeckLink 4K Extreme card
  • DeckLink 8K PRO card
  • Wirecast PRO
  • Vmix 4K

EVS XT3 ChannelMax (12 channel).

  • 12 channel server
  • EVS LSM controllers 2 pcs.
  • 1080p capability
  • DNxHD codec
  • Apple ProRes 4:2:2 codec
  • DVCPRO HD/50 codec
  • Mjpeg codec
  • AVC Intra codec
  • Advanced playlist management
  • Extended RAID SAS 900GBx 6 pcs.

EVS XFile 3

  • Support for 20 streams
  • Support for 4K/12G streams
  • Transcoding to various formats e.g. Prores, DNxHD
  • Transcoding from 4K to HD, 720p
  • Converting HDR to SDR
  • Archaization
  • Auto Archiving
  • Uploading external materials
  • Automatic upload of external materials
  • ICE Box 2 pcs.

PRICE 4500 euros nett per day

rental price per day

OB VAN Rental
Camera transmission truck

BROADCAST TRUCK RENTAL

You can get more information about the transmission truck by contacting us through the form in the "CONTACT" button or call us +48 722 720 710.
We are waiting 7 days a week from 08:00 to 20:00.
